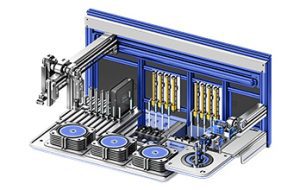

Equipment Introduction ：

After a period of use, electrical test disks may become soiled, experience hole size deformation, damage, etc. This equipment is used for cleaning and defect detection of test disks.

Equipment Parameters ：

 • Cleaning and Inspection Objects: 2 types of glass fiber turntables + 2 types of resin turntables

 • Maximum Inspectable Aperture of Turntable: ≤ 0.6mm

 • Maximum Inspectable Thickness of Turntable: ≤4mm

 • Continuous Operation Speed: ≤10min/turntable

 • Equipment Functions: Turntable feeding, turntable ultrasonic cleaning, turntable drying, turntable positioning and alignment, empty fixture storage and turnover, hole visual inspection, turntable recycling.

 • Regarding the drying function: The outer surfaces of all 4 types of turntables can be dried, but the 2 types of resin turntables are locked onto glass fiber blocks. Due to capillary action, water

Application Expansion ：

 This equipment can be extended and applied to other post-polishing cleaning processes.
